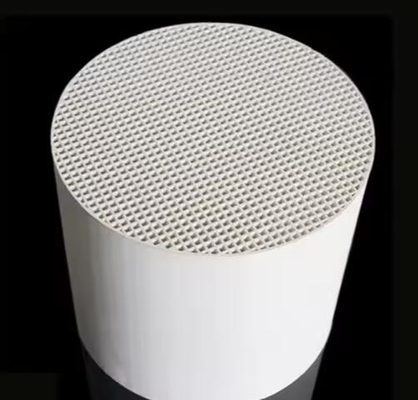

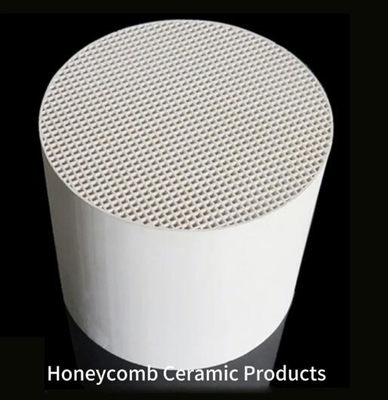

High Performance Rto Honeycomb Ceramic Heater Exchanger Alumina Cordierite Ceramic Honeycomb Thermal Storage Monolith

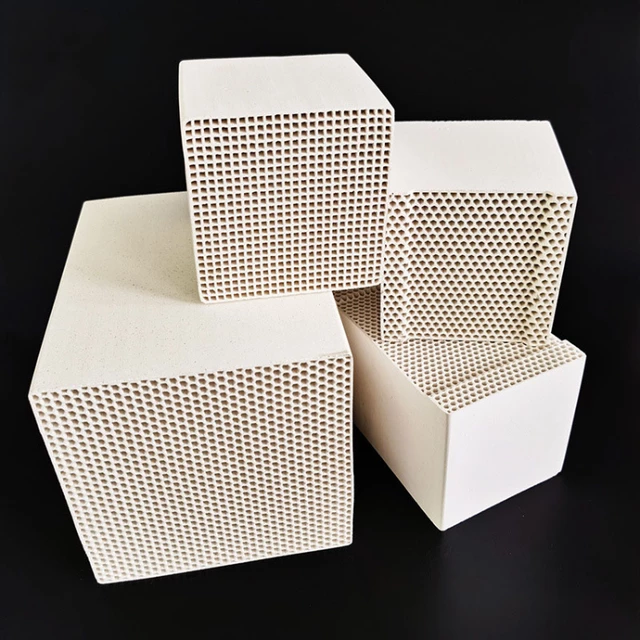

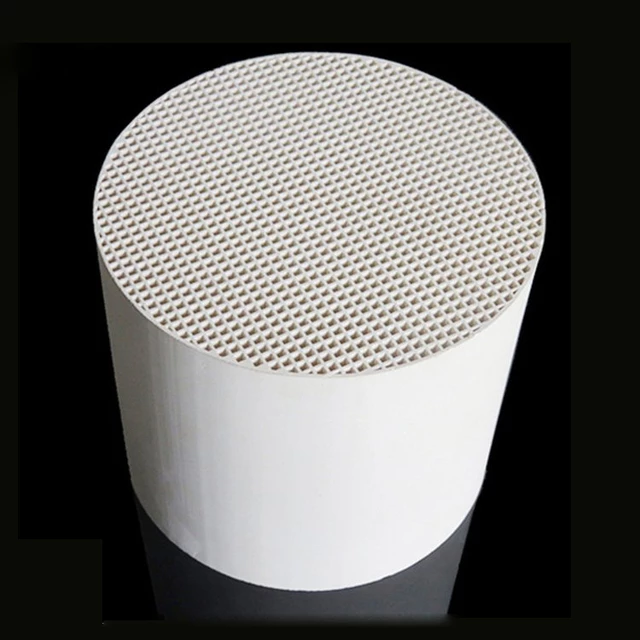

Grote Afbeelding : High Performance Rto Honeycomb Ceramic Heater Exchanger Alumina Cordierite Ceramic Honeycomb Thermal Storage Monolith

Productdetails:

Plaats van herkomst:	Henan, China
Merknaam:	RONGSHENG
Certificering:	ISO9001

Contact

High Performance Rto Honeycomb Ceramic Heater Exchanger Alumina Cordierite Ceramic Honeycomb Thermal Storage Monolith

beschrijving

Werktemperatuur:	- 200 tot 500 graden Celsius.	Waterdicht:	- Ja, dat klopt.
Installatiemethode:	Spray/injectie	Electrical Insulation:	High
Application:	Insulation	Dikte:	NANO
Thermal Conductivity:	0.001-0.01 W/mK	Particle Size:	Nanometer
Weerstand tegen hitte:	Hoog	Heat Resistance:	High
Easy To Install:	Yes	Electrical Conductivity:	Low
Working Temperature:	1900℃	UV-weerstand:	Sterk
Water Absorption:	Negligible
Markeren:	High Performance Honeycomb Ceramic Heater Exchanger , Alumina Cordierite Honeycomb Ceramic Heater Exchanger

Product descriptions from the supplier

Product Description

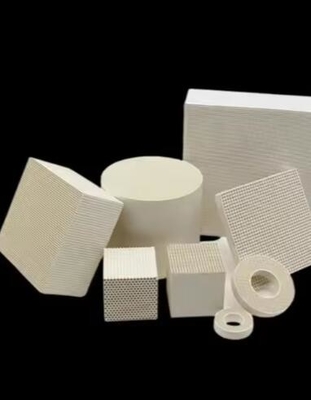

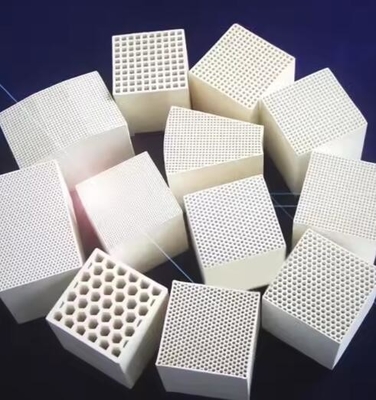

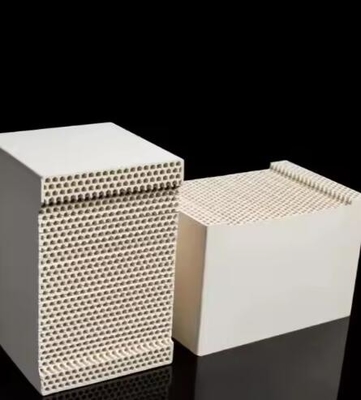

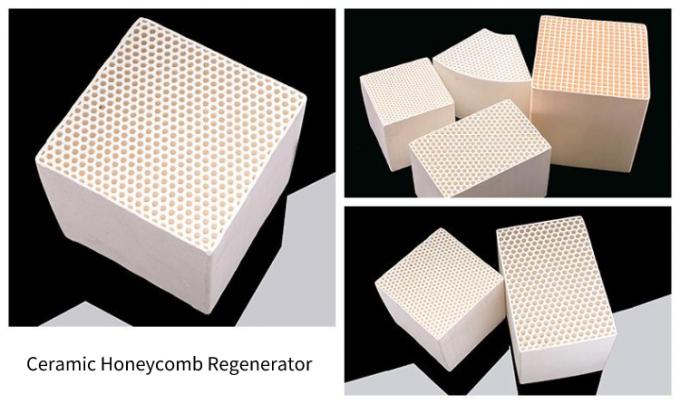

Honeycomb Ceramic Regenerator (for regenerative heating furnace) The honeycomb ceramic regenerator,also known as ceramic regenerator and ceramic honeycomb, is a key components of regenerative burner,widely used in steel, machinery, building materials, petrochemical, non-ferrous metal smelting and other industries,such as push- type heating furnace,step-type heating furnace, heat treatment furnace,ladle/ tundish roaster, forging furnace, melting furnace,soaking furnace, radiant tube burner, hood furnace,blast furnace hot blast stove, oil and gas boiler; various ceramic kiln in building materials industry,various glass kiln; various tubular heating furnace,cracking furnace and other in petrochemical industry furnaces. Advantages of Honeycomb Ceramic Regenerators The technology of honeycomb ceramic regenerator is to use the reversing device to make two regenerative types alternately absorb and release heat, recover the heat of the flue gas to the maximum limit,which can save fuel up to 40-70C. The output is increased by more than 15'C, the oxidation loss of steel billet is reduced by more than 40%. Since it was put on the market, the effect is good, and it is favored by the steel smelting industry.

Specification

Honeycomb ceramic regenerator Specifications and Dimensions:

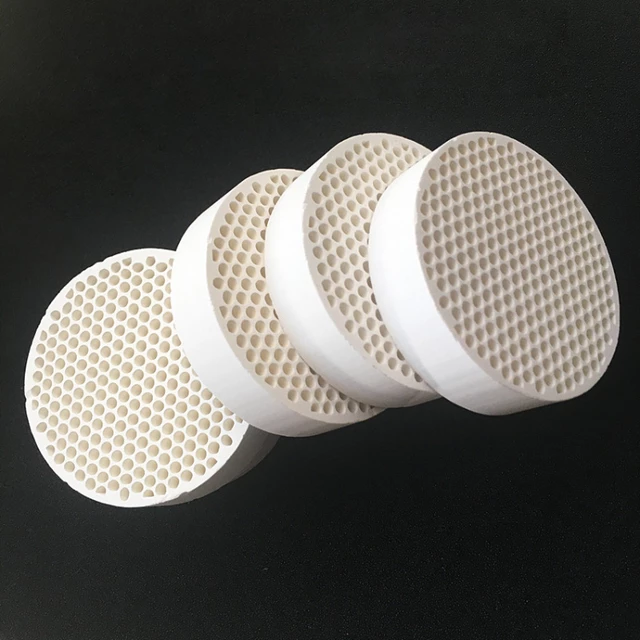

Size	Number of cell	Cell width(mm)	Thickness of inner wall(mm)	Thickness of out wall(mm)	Surface area (m2)	Opening ratio(%)	End face shape
200100100	20*9	Round ∮8.5	2.3	2.5	280	51	Flat Bevel Single groove Double groove
150100100	36*24	Square 3*3	1.0	1.2	731	52
150100100	35*20	Hexagonal ∮4	1.0	1.2	687	65
150100100	10*6	Hexagonal ∮12	4.0	4.0	210	50
150150100	35*20	Hexagonal ∮3.5	0.8	1.5	686	63
150100100	33*19	Round ∮4	1.0	1.3	568	53
150100100	15*9	Round ∮8.5	2.3	2.5	280	51
150100100	42*28	Square 2.6*2.6	1.0	1.1	815	53
100100100	7*6	Hexagonal ∮12	4.0	4.0	224	52
100100100	31*31	Square 2.65*2.65	0.7	1.0	1065	67
100100100	24*24	Square 3*3	1.0	1.2	731	52
100100100	23*20	Hexagonal ∮4	1.0	1.2	608	64
100100100	10*9	Square ∮8.5	2.3	2.5	280	51

Honeycomb ceramic regenerator Physical Properties:

Item	Corundum-mullite	Mullite	Cordierite-mullite	Cordierite	Chrome Corundum-mullite	Zirconium Corundum-mullite
Bulk density (g/cm3)	≥0.8	0.6~1.1	0.6~0.9	0.5~0.8	≥0. 8	≥0. 8
Thermal Expansion Coefficient (X10-60°C-1) (RT-800°C)	≤6	≤5.5	≤3	≤2.5	≤6.5	≤6
Specific heat capacity (J.(Kg.k)-1 )	≥800	≥800	≥750	≥750	≥800	≥800
Thermal Shock (°C)	≥300	≥300	≥400	≥500	≥300	≥350
Softening temperature under load (°C) (0.1MPa )	≥1500	≥1450	≥1350	≥1250	≥1500	≥1500
Compressive Strength (MPa) (C axis)	≥20	≥20	≥20	≥20	≥20	≥20
Compressive Strength(Mpa) (A, B axis)	≥4	≥4	≥3	≥3	≥4	≥4

Honeycomb ceramic regenerator Chemical composition:

Item	Corundum-mullite	Mullite	Cordierite-mullite	Cordierite	Chrome Corundum-mullite	Zirconium Corundum-mullite
SiO2	20~30	25~35	40~50	28~38	20~25	28~38
Al2O3	65~75	55~65	40~50	45~55	65~75	45~55
MgO	≤0.5	≤1	5~9	11~14	≤0.5	11~14
Fe203+TiO2	1~4	1~4	1~3	1~3	1~3	1~3
Others	≤5	≤5	≤5	≤5	≤8	≤5

Product Application

Application of Honeycomb Ceramic Regenerator


Honeycomb ceramic regenerators can be used in various push steel furnaces, walking furnaces, heat treatment furnaces, ladle/tundish roasting furnaces, forging furnaces, melting furnaces, soaking furnaces, radiant tube burners, bell furnaces, blast furnace hot blast furnaces, Oil and natural gas boilers: various ceramic kilns and various glass kilns in the building materials industry: various tubular heating furnaces, cracking furnaces and other industrial kilns in the petrochemical industry.
