Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture

Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture
Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture

Grote Afbeelding :  Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture

Productdetails:
Plaats van herkomst: Henan, China
Merknaam: RONGSHENG
Certificering: ISO9001

Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture

beschrijving
Vormen: Verkrijgbaar in verschillende vormen en maten Hoogste gebruikstijd: 900
Soortelijk gewicht: 1.3-1.55 Permanente krimp van de liner: -4,0 ((900-1000°C)
Verschijning: Wit poeder, Vloeistof/Wit poeder Productennaam: Grafiet elektrode
Inpakken: Poeder: zak, vloeistof: vat Land van herkomst: Henan China
Kwaliteit: laag asmateriaal, lage geleidbaarheid Thermische geleidbaarheid: Laag
Temperatuurbereik: Tot 3000 ° C Cerficate: ISO9001
Lengte: 1500--2700 mm Treksterkte: 0.04MPa
Grondstoffen: Magnesium, koolstof
Markeren:

Recrystallized Silicon Carbide refractory plate

,

SiSiC ceramic kiln furniture

,

High temperature SiC sanitary ware

Product Description

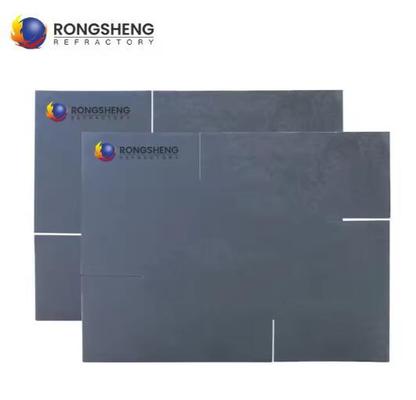

Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture 0



Silicon carbide plate description



Silicon carbide plate silicon carbide bricks, sheds, brackets and silicon carbide special-shaped parts produced with silicon carbide as the main raw material not only have the inherent characteristics of silicon carbide such as high strength and high hardness, but also have high refractoriness under load, fast heat conduction, anti-oxidation, It is not easy to shrink and deform under high temperature, and has the characteristics of long service life.



Silicon carbide plate specifications



Silicon carbide plate used the high purity silicon carbide(SIC) and industrial silicon powder as the primary materials.Shaped by vibration,made by high sintering.

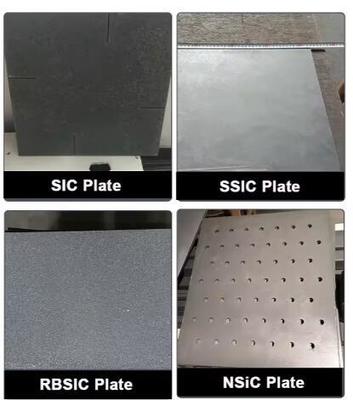

Furnace refractory plate types include SiC plate, SiSiC plate, NSiC plate, RSiC plate.



Silicon carbide plate features



1. Good thermal conductivity
2. Good high temperature strength
3. Wear resistant and erosion resistant
4. Good thermal shock resistance
5. Good corrosion resistance
6. Good oxidation resistance



Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture 1

Specification
Properites Units Silicon carbide Material
Type   SiC SiSiC NSiC RSiC
Chemical composition SiC% 89 87 92 70 99
SiO2 % 5 6 - Si3N4 28 -
Al2O3% 1.0 2.0 - - -
Bulk Desity g/cm3 2.85 2.8 3.01 2.8 2.75
Apparent porosity % 12 14 0.1 12 14
M.O.R.@20℃ MPa 50 48 260 180 100
M.O.R.@1300℃ MPa 58 56 280 185 120
C.T.E.@20℃-1000℃ 10-6K-1 4.8 4.2 4.5 4.7 4.6
C.C.S MPa 100 90 900 500 300
Thermal shock resistance 1 5 5 5 5 5
Max working temperature 1450 1420 1300 1500 1650
application Used in ceramic shuttle kiln, tunnel kiln and roller kiln,Kiln furniture.

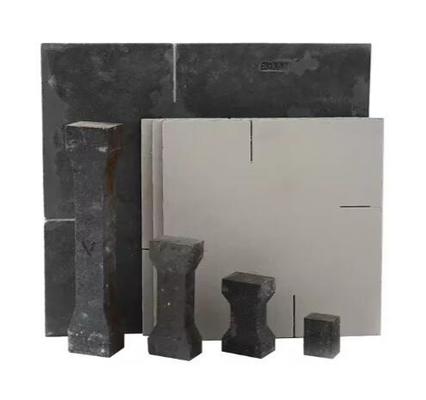

Recrystallized Silicon Carbide Plate RSIC SiSiC Refractory Ceramic Plate High Temperature SiC Sanitary Ware Kiln Furniture 2



If you want to know more products, please contact us immediately, we have professional engineers to answer your questions

If you have more needs, we can customize the size, material, etc.

Application

Silicon carbide plate application



1. Non-ferrous metal smelting industry,ceramic,enamel and cement rotary kiln mouth, as well as glass annealing furnace and various kind of high temperature furnace.



2. Blast furnace lining,the lining of aluminium electrolytic bath,glass tank,structural ceramics,sanitary ceramics,domestic ceramics,electrotechnical porcelain refractory material, sinter powder metal industry.



3. Industrial ceramics bearing plate burning,pushing board, sagger; muff plate of annealing furnace;lining and ignitor of CFBB; lining of garbage incinerators,heat treatment electric heating furnace,soaking pit furnace etc.
